Unit Process Life Cycle Inventory
Dr. Devi Kalla, Dr. Janet Twomey, and Dr. Michael Overcash
Reaming Process Summary
Reaming is a frequent unit process in manufacturing as a mass reduction step, used for enlarging and accurately sized existing hole by means of multifluted cutting tool. Reaming removes a minimal amount of material and is often performed after drilling to obtain both a more accurate diameter and a smoother internal finish. Hence this life cycle heuristic is to establish representative estimates of the energy and mass loss from the reaming unit process in the context of manufacturing operations for products. The reaming unit process life cycle inventory (uplci) profile is for a high production manufacturing operation, defined as the use of processes that generally have high automation and are at the medium to high throughput production compared to all other machines that perform a similar operation. This is consistent with the life cycle goal of estimating energy use and mass losses representative of efficient product manufacturing.
Reaming is a machining process in which a light cut to improve the accuracy of a round hole and enlarges an existing hole to the diameter of the tool by means of a rotary multifluted cutting tool typically aided by cutting fluids. As the reamer is rotated and advanced axially into the workpiece, material is removed in the form of chips. Chips are produced within the workpiece and move in direction opposite to axial movement of the reamer. For soft metals, a reamer typically removes a minimum of 0.2 mm (0.008 in.) on the diameter of a drilled hole; for harder metals, about 0.13 mm (0.005 in.) is removed. Consequently, chip disposal in reaming and the effectiveness of cutting fluids are important. Generally, reaming is done using a drill press. However, lathes, machining centers and similar machines can be used as well. The workpiece is firmly held in place by either a vice, chuck or fixture while the reamer advances. An example CNC machine is given in Figure MR6.1, while the reaming mechanism is illustrated in Figure MR6.2.
Figure MR6.3 shows an overview of the developed environmental-based factors for reaming operations. For a given workpiece (illustrated in Figure MR6.2) the life cycle analysis yields energy use and mass losses as byproducts or wastes.

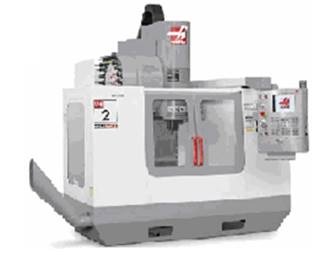

Figure MR6.1. Computer numerical control (CNC) machine with 3-axis control (Photograph from Haas Automation, Inc. California, USA)


Figure MR6.2. Process Schematic (Todd et al., 1994)



Figure MR6.3. LCI data for reaming process

Methodology for Unit Process Life Cycle Inventory Model

In order to assess a manufacturing process efficiently in terms of environmental impact, the concept of a unit operation is applied. The unit process consists of the inputs, process, and outputs of an operation. Each unit process is converting material/chemical inputs into a transformed material/chemical output. The unit process diagram of a reaming process is shown Figure MR6.4.

The transformation of input to output in this report generates five lci characteristics,

  1. Input materials
  2. Energy required
  3. Losses of materials (that may be subsequently recycled or declared waste)
  4. Major machine and material variables relating inputs to outputs
  5. Resulting characteristics of the output product that often enters the next unit process.

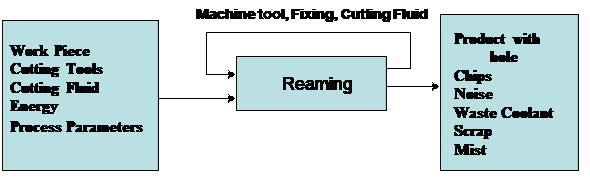

Figure MR6.4. Input-Output diagram of a reaming process

Reaming Process Energy Characteristics

Because high production reaming is a semi-continuous process. Many of these automated CNC machines have more than three axes. One of the axes is often designed as a rotary table to position the work-piece at some specified angle relative to the spindle. The rotary table permits the cutter to perform reaming on four sides of the part. These machines are classified as horizontal, vertical or universal based on the spindle orientation. The uplci is based on a representative operational sequence, in which

  1. Work set-up generally occurs once at the start of a batch in production. Set-up is made on the machine tool as the work piece is introduced into the machine. The work piece is positioned, all drawings and instructions are consulted, and the resulting program is loaded. Typical set-up times are given in Table MR6.1 (Fridriksson, 1979). The total set-up time must be divided by the size of the batch in order to obtain the set-up time per component. The energy consumed during this set-up period is divided by all the parts processed in that batch and is assumed to be negligible and is discussed in the example below.
  2. The power consumption during a campaign for positioning or loading each new piece into the CNC machine, with respect to tool axis is low. Time is required to load the workpiece into the CNC machine and secure it to the fixture. The load time can depend on the size, weight, and complexity of the workpiece, as well as the type of fixture. This is at the level of Basic energy and is labeled Loading.
  3. Relative movement of the cutting tool and the workpiece occurs without changing the shape of the part body, referred to as Idle Energy and is labeled Handling. This is the time required for any tasks that occur during the process cycle that do not engage the workpiece. This idle time includes the tool approaching and retracting from the workpiece, tool movements between features, adjusting machine settings, and changing the tools.
  4. Reaming of a hole occurs and is labeled Tip Energy.
  5. The piece is repositioned for subsequent holes, thus the energy and mass loss per hole is repeated. (Idle Energy for Handling and then Tip Energy for Reaming)
  6. When all holes are finished, the piece is unloaded and typically sent forward to another manufacturing unit process. This is at the level of Basic Energy and is labeled Unloading.



Table MR6.1. Set-up times for machining operations (Fridriksson, 1979)

In this representative unit process, the life cycle characteristics can be determined on a per reamed hole basis or on a full piece (with one or more holes) basis. Since this is a high production process, the startup (at the beginning of a batch or shift) is deemed to be small and not included. In this uplci, there are three typical power levels that will be used, Figure MR6.5. Each power level, kw, is the incremental power not the absolute total power.  Thus if electrical measurements are made, the kw during the tip measurement must have the idle and basic power (kw) values subtracted to obtain this tip power (kw). Correspondingly, there are times within the reaming sequence from which these three power levels are used, Figure MR6.5. The overall time per piece is referred to as cycle time and is generally consistent in a batch. Each power level (basic, idle, and reaming) is a reflection of the use of various components or sub-operations, of the CNC machine, Figure MR6.6. The steps 2), 3), 5), and 6) are estimated as representative values for use in this unit process lci and energy required of removing material by reaming, step 4), is measured using specific cutting energy values.



The system boundaries are set to include only the use phase of the machine tool, disregarding production, maintenance and disposal of the machine. Moreover, the functioning of the manufacturing machines is isolated, with the influence of the other elements of the manufacturing system, such as material handling systems, feeding robots, etc. are covered in other uplci reports.
The energy consumption of reaming is calculated as follows:

Etotal = Pbasic * (tbasic )  +  Pidle * (tidle) + Preaming * (treaming )

Parameters Affecting the Energy Required for Reaming

An approximate importance of the many variables in determining the reaming energy requirements was used to rank parameters from most important to lower importance as follows:



  1. Workpiece Material properties
  2. Feed rate
  3. Cutting speed
  4. Reamer diameter
  5. Hole depth (Reaming time)
  6. Number of cutting edges
  7. Coolant
  8. Tool wear
  9. Geometry and set-up

From this parameter list, only the top 5 were selected for use in this unit process life cycle with the others having lower influence on energy. Energy required for the overall reaming process is also highly dependent on the time taken for idle and basic operations.



Reaming Energy

Reaming time (treaming) and power (Preaming) must be determined for the reaming energy and are calculated from the more important parameters given above. The calculations are illustrated in Figure MR6.7. Feed for reaming is the axial advance in one revolution of the spindle, f (mm/revolution). The rotational cutting speed, V (m/min), is the rotational speed difference between the cutting tool and the surface of the workpiece it is operating on. Reamer is used to enlarge an existing hole which is done by drilling operation. So speed and feed can be estimated from the drilling process data. Reaming is done at half the speed and twice the feed as drilling. This rule still applies on the milling machine as it does on the drill press or the lathe.

V and f are estimated from the material properties, Table MR6.2(a) and MR6.2(b). The rotational speed of the spindle, N, (rev/min), N = V/ (π*D). Where V = rotational cutting speed, mm/min and D = reamer diameter, mm. Reamers generally have more than one cutting edge – introducing the concept of tooth loading, or table feed per tooth. Feed per tooth, ft (mm/tooth) is the thickness of chip material that each cutting edge of a tool removes with one pass. The feed per tooth is roughly proportional to ream diameter, higher feeds for larger diameter.

The feed rate, fr (mm/min) is the rate at which the cutting tool and the workpiece move in relation to one another. The rate of tool advance (feed rate), fr (mm/min) is the product of f*N. The volume removal rate has been defined as the uncut area multiplied by the rate at which the material is removed perpendicular to the area. For a hole of diameter D, the volume material removal rate (VRR) is (0.25π (D-D­c) 2)* (fr ), mm3/min. Difference between the initial and final diameter is the depth of cut which is referred as ‘l’ in mm.

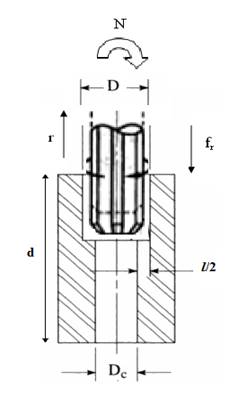

FigureMR6.7. Schematic Diagram of reaming Process

Reaming time (treaming) is
Time for reaming a through hole tream = (d)/f*N = d/fr                                                     (2)
Where d = depth of the hole, mm.
f – Feed mm/rev.
N- Spindle speed rpm
fr – feed rate, mm/min

The reaming energy is thus E (Joule/hole) = Reaming time*Preaming,
E = ream time*(volume removal rate)*(specific cutting energy, Up, W/mm3/sec)
Eream (Joule/hole) = tream *VRR*Up = tream * Preaming                                                  (3)

With a given material to be reamed, the specific cutting energy, Up, is given in Table MR6.2(a). Then for that material a representative cutting speed, V is selected from Table MR6.2(a). Then using the hole diameter, D (final diameter), the spindle speed, N, is calculated = V/ (π*D). From Table MR6.2 (a and b) for the material being reamed the feed, f is also specified. Then the time for reaming, tream , is d/(f*N) or d/fr . The volume removal rate (VRR) is fr *(0.25π*(D-Dc)2). Where Dc is the initial diameter of the hole.
The reaming energy is then calculated from equation 3. Thus with only the material to be reamed, the depth of the hole, initial diameter and the final diameter of the hole, one can calculate the lci reaming energy for one hole.  This then must be added to the idle and basic energies, see below.
Table MR6.2(a) Average values of energy per unit material removal rate and recommended speeds and feeds ( Erik, 2000; Hoffman, 2001; Joseph, 1989; Kalpakjian, 2008; 9, 10)

Material

Hardness
[Brinell hardness number]

Specific cutting energy, Up
[W/ mm3 per sec] (Hp/ in3 per min)

Cutting Speed, V (m/min, ft/min)



Feed, f





Density (kg/m3)

Aluminum Alloys(Wrought)

30 – 80

0.76 (0.28)

50 - 120, 175 - 400



Z



2712



75 – 150

0.76 (0.28)

50 - 120, 175 - 400



Z



Aluminum (Cast)

40 – 100

0.84 (0.31)

50 - 120, 175 - 400



Z

2560-2640



70-125

0.84 (0.31)

50 - 120, 175 - 400

Z



Aluminum (Unalloyed)

80

0.3 (0.11)

50 - 120, 175 - 400



Z



7700-8700

High Silicon Aluminum (10-14% Si)



0.84 (0.31)

50 - 120, 175 - 400



Z



2700-2750

High Silicon Aluminum (14-16% Si)



1.48 (0.55)

50 - 120, 175 - 400



Z



Malleable Cast Iron (Short Chipping)

110 – 145

1.21 (0.45)

25 - 30, 75 - 100



Z



6800-7800

Malleable Cast Iron (Long Chipping)

200 – 230

1.3 (0.48)

12 - 30, 40 - 75

Y



6800-7800

Grey Cast Iron

180

1.3 (0.48)

 20 - 60, 60 - 200

Y

6800-7800



260

1.48 (0.55)



X



Nodular Cast Iron

160

1.21 (0.45)

20 – 60, 60 - 200



Y





250

2.10 (0.78)



X

6800-7800

Cast Steel (Unalloyed)

150

2.16 (0.8)

20 - 30, 60 - 100



Y



6800-7800

Cast Steel (Low Alloy)

150 – 250

2.51 (0.93)

20 - 30, 60 - 100



Y



6800-7800

Cast Steel (High Alloy)

160 – 200

2.94 (1.09)

20 - 30, 60 - 100



X



6800-7800

Unalloyed Steel

110

1.35 (0.5)

50 - 120, 175 - 400

Z

7850



150

1.89 (0.81)

20 – 60, 60 - 200

Y





310

2.92 (1.08)

15 - 30, 50 -100

X



Low Alloy Steel

125 – 225

2.51 (0.93)

15 - 20, 50 - 60

Y

7850



220 – 420

3.29 (1.22)

12 - 15, 40 - 50

X



High Alloy Steel

150 – 300

2.94 (1.09)

8 - 12, 25 - 40

X





250 – 350

4.56 (1.69)

8 - 12, 25 - 40

W



Hardened Steel

450

4.56 (1.69)

25 - 30, 75 -100

W



Stainless Steel (Ferritic, Martensitic)

150 – 270

2.81 (1.04)

15 - 24, 50 - 70



X



7480-8000

Stainless Steel (Austenitic)

150 – 275

2.94 (1.09)

24 – 28, 70 - 90



X



7480-8000

Stainless Steel (Quenched and Tempered Martensitic)

275 – 425

2.59 (0.96)

10 – 12, 30 - 40





X



Stainless Steel

150 – 450

3.46 (1.28)

15 – 24, 50 - 70



X



7480-8000

Iron Based Heat Resistant Super Alloy

180 – 230

3.7 (1.37)







7850



250 – 320

3.86 (1.43)







Nickel Based Heat Resistant Super Alloy

140 – 300

3.46 (1.28)

6 – 8, 20 - 25



X



8800



300 – 475

4.21 (1.56)

5 – 6, 15 - 20

W



Nickel Based Heat Resistant Super Alloy(Cast)

200 – 425

4.21 (1.56)

16 – 18, 55 - 65





W



8800

Cobalt Based Heat Resistant Super Alloy

180 – 230

3.46 (1.28)

5 - 7, 15 - 25



W



8746



270 – 320

4.21 (1.56)

5 - 7, 15 - 25

W



Cobalt Based Heat Resistant Super Alloy(Cast)

220 – 425

4.27 (1.58)

5 - 7, 15 - 25





W



8746

Titanium Alloys (Commercially Pure)

110-200

1.51 (0.56)

5 - 6, 15 - 20



X



4500

Titanium Alloys

300-360

1.65 (0.61)

5 - 6, 15 - 20

Y

4500



275-350

1.67 (0.62)

5 - 6, 15 - 20

W

4500

Copper

125-140

2.70 (1.00)

30 - 80, 100 - 250

Z

8930

Copper alloys

100-150

2.20 (0.80

30 - 80, 100 - 250

Z

8930

Leaded brass

60-120

1.90 (0.70)

30 - 80, 100 - 250



7700-8700

Unleaded brass

50

2.70 (1.00)

30 - 80, 100 - 250





Magnesium alloys

40-70

0.55 (0.20)

50 - 110, 150 - 350



Z





70-160

1.10 (0.40)

50 - 110, 150 - 350

Z



Refractory alloys(Tantalum, columbium, Molybdenum)

210-230

5.50 (2.00)





10188

Tungsten

320

8.00 (3.00)





19600

Plastics

hard



30, 100









Idle Energy

Energy-consuming peripheral equipments included in idle power (Pidle) are shown in Figure MR6.6. In the machining praxis it is known as “run-time mode” (Abele et al., 2005). The average idle power (Pidle) of automated CNC machines is between 1,200 and 15,000 watt*. (* This information is from the CNC manufacturing companies, see Appendix 1). The handling power characterizes the load case when there is relative movement of the tool and the work-piece without changing the shape of the body (e.g. rapid axis movement, spindle motor, coolant, tool changer) - Handling.
The idle time (tidle) is the sum of the handling time (thandling) and the reaming time (calculated above as tream, equation 2), see Figure MR6.5. For CNC machines, the handling times are the air time of tool moving from home position to approach point, approach, overtravel, retraction after reaming, and traverse, if needed to other holes in the same work piece. Approximate Handling time will vary from 0.1 to 10 min. We can calculate the handling times and energy as follows.

Idle time = [timehandling + timeream]                                                                                (4)

Reaming tool moves from the home position to the approach point at vertical traverse rate, VTR and it can be defined as the air time1. This distance would be in the range of 10 to 30 mm. During the reaming process, the tool is considered to be at an offset of 0.3 times the hole diameter above the work piece and so the approach distance is 0.3D. We also assume the overtravel below the hole is 0.3D. These forward distances are at the feed rate, fr. After reaching the overtravel point, the reaming tool retraces back to an offset position, but at a faster rate called the vertical traverse rate, VTR. The retraction time is estimated from the sum of the approach, overtravel, and distances, d, and the traverse rate, VTR.

Time for handling is
Air time1 + Approach/overtravel times + retraction times = timehandling                       (5)

The reaming time (for distance d) was previously calculated and is not included in the handling time.

To this idle time must be added the time to traverse to the next hole (if needed) and this is (hole spacing)/traverse speed, as given by the CNC manufacturer. The example given later in this uplci lists such traverse speed data for use in any representative reaming scenarios.

From these calculations the idle energy for a single hole is

E (Joule/hole)idle = [thandling + tream]* Pidle                                                                       (6)

            Thus with just the hole diameter, the information used in calculating tream, and the representative idle power (1,200 – 15,000 watts), one can calculate the idle energy for this reaming unit process.

Basic Energy

The basic power of a machine tool is the demand under running conditions in “stand-by mode”. Energy-consuming peripheral equipments included in basic power are shown in Figure MR6.6. There is no relative movement between the tool and the work-piece, but all components that accomplish the readiness for operation (e.g. Machine control unit (MCU), unloaded motors, servo motors, pumps) are still running at no load power consumption. Most of the automated CNC machine tools are not switched off when not reaming and have a constant basic power. The average basic power Pbasic of automated CNC machines is between 800 and 8,000 watt* (* From CNC manufacturing companies the basic power ranges from 1/8th to 1/4th of the maximum machine power, (see Manufacturers Reference Data in Appendix). The largest consumer is the hydraulic power unit. Hydraulic power units are the driving force for motors, which includes chiller system, way lube system and unloaded motors.

From Figure MR 5.5, the basic time is given by
Tbasic = tload/unload + thandling + tream                                                                                                           (7)
where   thandling + tream = tidle as determined in equation 4.

An exhaustive study of loading and unloading times has been made by Fridriksson, 1979; it is found that these times can be estimated quite accurately for a particular machine tool and work-holding device if the weight of the workpiece is known. Some of Fridriksson, 1979 results are showed in Table MR6.3, which can be used to estimate machine loading and unloading times. For reaming representative work-holding devices are vise, jigs, parallels, V-blocks and rotary table. To these times must be added the times for cleaning the workholding devices etc.

Thus the energy for loading and unloading is given by

Basic energy, tbasic = [timeload/unload + timeidle ]*Pbasic                                                  (8)

Where timeidle is given in earlier sections and timeload/unload is from Table MR6.3. Pbasic is in the range of 800 to 8,000 watts.

            Thus the uplci user must add some reasonable value from Table MR6.3 for the load/unload times and can then use the timeidle to determine the Basic energy



Method of Quantification for Mass Loss

            The waste streams in reaming process, identified with the associated process performance measures, are depicted in the Figure MR6.8 below.





               Reaming





Waste Stream



Gas/Aerosol

  • Cutting fluid mist
  • Dust (dry machining)



Solid

  • Chips, worn tools



Liquid

  • Spent cutting fluids



Figure MR6.8. Waste Streams in reaming process

Lci for Material Mass Loss Calculations

            The workpiece material loss after reaming a hole can be specified as chip mass (ms). Metal chips are accumulated, and cutting fluid is separated from these. The chip mass (ms) can be calculated by multiplying the volume of material removed (Vremoval) by the density of the workpiece material ρ.
Density of the material can be attained from the material property list as shown in Table MR6.2(a) and its unit is kg/m3.
Volume of the material removed for a hole =  [mm3]            (10)
Where
D = Final hole diameter in mm,
Dc = Initial hole diameter in mm,
d = depth of the hole in mm.
Chip mass (ms) = Vremoval * ρ * (1 m3/1 D+09 mm3)    [kg]                                         (11)

Lci for Cutting Fluid Waste Calculations

For reaming operations, cutting fluids can be used to allow higher cutting speeds, to prolong the cutting tool life, and to some extent reduce the tool - work surface friction during machining. The fluid is used as a coolant and also lubricates the cutting surfaces and the most common method is referred to as flooding (23). Table MR6.4 shows the recommended cutting fluid for reaming operation. Cutting fluid is constantly recycled within the CNC machine until the properties become inadequate. The dilution fluid (water) is also supplied at regular intervals due to loss through evaporation and spillage.

Table MR6.4. Cutting fluid recommendations for reaming operation
(Hoffman et al., 2001)

Material

Reaming (most of these cutting fluids are aqueous suspensions)

Aluminum

Soluble Oil (75 to 90 percent water).
Or
10 Percent Lard oil with 90 percent mineral oil.

Alloy Steels

Soluble oil

Brass

Soluble oil (75 to 90 percent water).
Or
30 percent Lard oil with 70 percent Mineral oil.

Tool steels and Low carbon Steels

Soluble Oil

Copper

Soluble Oil

Monel Metal

Soluble oil

Cast iron

Dry

Malleable Iron

Soluble Oil





Bronze

Soluble oil

Magnesium

60-second Mineral Oil





The service of a cutting fluid provided to one CNC machine tool for one year was considered as the functional unit. It is assumed that the number of parts produced per unit time will not vary depending on the cutting fluid replacement. The reaming time associated with one year of production was based on the schedule of 102 hr of reaming/week for 42 weeks/year from one of the most comprehensive cooling fluid machining studies (Andres et al., 2008). From (Andres et al., 2008) a single CNC machine using cutting fluid required an individual pump to circulate the fluid from a 55 gallon (208L) tank to the cutting zone. The 208L/machine is recycled within process until it is disposed of after two weeks. Assuming cutting fluid is used 204 hr/ 2 weeks, then the cutting fluid loss is 208L/ (204*60) per minute. Which is 0.017 L/min or about 17 g/min as the effective loss of cutting fluid due to degradation.  The coolant is about 70wt% - 95 wt% water, so at 85wt% water, the coolant oil loss is 15wt% or 2.5 g cutting oil/min. With the machining time for reaming a hole the mass loss of coolant oil can be calculated.
There is also be a fugitive emissions factor here that could account for aerosol losses. Wlaschitz and Hoflinger (2007) measured aerosolized loss of cutting fluid from a rotating machining tool under flooding conditions. For a cutting fluid use of 5,700 g/min, the aerosol oil loss was about 0.0053 g/min and water loss of 0.1 g/min. Other losses from spills and carry off (drag-out) on workpieces were not included at this time.

Lci for Lubricant Oil Waste Calculations

            Lubricant oil is mainly used for a spindle and a slide way. Minute amount of oil is infused to the spindle part and the slide way at fixed intervals. From the CNC manufacturing companies it is found that lubricant oil is replaced only 2-3 times of the life of the machine. It is assumed that the life of the machine is around 20 years. Since it is negligible lubricant oil loss is not considered for this study.



Cutting Tool usage

Reaming processes often require regular replacement of cutting tools. The tool life is a time for a newly sharpened tool that cuts satisfactorily before it becomes necessary to remove it for regrinding or replacement. Worn tools contribute significantly to the waste in the form of wear particles and a worn tool at the end of tool life. The wear particles usually are carried away by the cutting fluid. From an environmental perspective the cutting tools remaining at the end of the tool life are of importance as they are often disposed off and hence are a burden to the environment. The worn tool can be identified by the process performance in terms of the cutting forces, energy consumed, and surface finish. For simplification regrinding of the tools are not considered.

Case Study on Reaming

            In this report we analyze the detailed energy consumption calculations in reaming process. The machining process is performed on Jeenxi Technology 4-axis CNC machine (JHV – 1500) in a high production mode. The machine specifications are listed below:

Table MR6.5.  Specifications of JHV – 1500 CNC Machine

Model

JHV - 1500

TRAVEL

Liner

X axis Travel (mm)

1500

Y axis Travel (mm)

750

Z axis Travel (mm)

700

Distance from the table to spindle nose (mm)

120 – 820

TABLE



Table dimensions, mm

1650 x 750

Max. load of table (kg)

1000

SPINDLE (rpm)

8000

Spindle Taper

BT - 40

BT - 40

Spindle Speed (rpm)

8000, 10000

10000, 12000, 15000

Spindle Drive

Belt type

Direct type

Spindle Motor (kw)

7.5 / 11

7.5 / 11

Spindle Cooling

Oil Cooler

FEED RATE



Rapid Traverse (X,Y) (m/min), HTR

30

Rapid Traverse (Z) (m/min), VTR

24

Cutting Feed rate (mm/min), fr

1 – 15000

3 Axes motor output (X, Y, Z) (kw)

4.0 / 4.0 / 7.0

A.T.C



Magazine Type

Carosel

Arm

Tool Magazine Capacity (pcs)

16

24

Max. Tool Diameter (mm)

100 / 150

80 / 150

Max. Tool Length (mm)

300

300

Max. Tool Weight (kg)

7

7

Tool Selection

Fixed type

Random

OTHER



Maximum Power Consumption (KW)

30

Floor Space (L x W x H)

4100 x 2640 x 2810 mm

Machine Weight (kg)

11000



Product Details:

            For this example we are assuming a grey cast iron (BHN 180) as the work piece. The work piece is a square block of dimensions 100 mm x 100 mm x 50 mm (L x H x B). The objective of the study is to analyze the energy consumption in reaming 4 symmetrical holes of 25.4 mm diameter through the thickness of the work piece. Initial hole diameter is 25 mm. The part dimensions are shown in Figure MR6.9. From the dimensions and the density from Table MR6.2(a), the weight of the workpiece is 3.6 kg.



Summary:

This report presented the models, approaches, and measures used to represent the environmental life cycle of reaming unit operations referred to as the unit process life cycle inventory. The five major environmental-based results are energy consumption, metal chips removed, cutting fluid, lubricant oil, and cutting tool. With only the following information the unit process life cycle energy for reaming can be estimated.

  1. material of part being manufactured
  2. diameter, number of holes, and location
  3. hole depth to be reamed
  4. Table MR6.4

The life cycle of reaming is based on a typical high production scenario (on a CNC Reaming machine) to reflect industrial manufacturing practices.

References Cited



  1. Abele, E.; Anderl, R.; and Birkhofer, H. (2005) Environmentally-friendly product development, Springer-Verlag London Limited.
  2. Clarens, A.; Zimmerman, J.; Keoleian, G.; and Skerlos, S. (2008) Comparison of Life Cycle Emissions and Energy Consumption for Environmentally adapted Metalworking Fluid Systems, Environmental Science Technology, 10.1021/es800791z.
  3. Dahmus, J.; and Gutowski, T. (2004) An environmental analysis of machining, Proceedings of IMECE2004, ASME International Mechanical Engineering Congress and RD&D Expo, November 13-19, Anaheim, California USA.
  4. Erik Oberg. (2000) Machinery’s Handbook, 26th Edition, Industrial Press.
  5. Fridriksson, L. Non-productive Time in Conventional Metal Cutting, Report No. 3, Design for Manufacturability Program, University of Massachusetts, Amherst, February 1979.
  6. George, F.S; and Ahmad, K. E. (2000) Manufacturing Processes & Materials, 4th Edition, Society of Manufacturing Engineers.
  7. Groover, M.P. (2003) Fundamentals of Modern Manufacturing, Prentice Hall.
  8. Hoffman, E.; McCauley, C.; and Iqbal Hussain, M. (2001) Shop reference for students and apprentice, Industrial Press Inc.
  9. http://www.engineeringtoolbox.com/metal-alloys-densities-d_50.html
  10. http://www.mapal.us/calculators/Reaming/CalculatorReaming.htm
  11. Joseph R. Davis. (1989) Machining Handbook, Vol. 16, American Society for Metals international.
  12. Kalpakjian, S.; and Schmid, S. (2008) Manufacturing Processes for Engineering Materials, 5th Edition, Prentice Hall.
  13. Piacitelli, W.; Sieber, et. al. (2000) Metalworking fluid exposures in small machine shops: an overview, AIHAJ, 62:356-370.
  14. Schrader, G.; and Elshennawy, A. (2000) Manufacturing Processes & Materials, 4th Edition, Society of Manufacturing Engineers.
  15. Terry, R.; and Erik, L. (2003) Industrial Plastics: Theory and Applications, 4th Edition, Cengage Learning.
  16. Todd, R.; Allen, D.; and Alting, L. (1994) Manufacturing processes reference guide, Industrial Press, New York.
  17. Wlaschitz, P. and W. Hoflinger. (2007) A new measuring method to detect the emissions of metal working fluid mist, Journal for Hazardous Materials, 144:736-741.

Appendices

Manufacturers Reference Data



The methodology that has been followed for collecting technical information on CNC machines has been largely based in the following:

The documentation of the CNC machine and the technical assistances collected from the manufacturing companies through internet. Several interviews with the service personnel of the different CNC manufacturing companies have been carried out. After collecting the information from the different companies it has been put together in the relevant document that describes the different approaches the different companies have regarding the technical information on the CNC machines. Telephone conversations allowed us to learn more about basic power and idle power. Companies that involved in our telephone conversations are Bridge port, Fadal, Hass and Jeenxi. These companies’ manufactures different sizes of CNC machines, but this report shows the lower, mid and highest level of sizes. For our case study we picked machine at the highest-level.

Specifications

JEENXI TECHNOLOGY

Model Number

JHV – 850

JHV – 1020

JHV – 1500

Spindle Speed

8000 rpm

8000 rpm

8000 rpm

Spindle Drive

Belt/Direct type

Belt/Direct

Belt/Direct type

Spindle Motor

5.5/7.5 kw

7.5/11 kw

7.5/ 11 kw

Rapid Traverse (X,Y)

30 m/min

30 m/min

30 m/min

Rapid Traverse (Z)

20 m/min

20 m/min

24 m/min

Cutting Feed rate

1 – 15000 mm/min

1 – 15000 mm/min

1 – 15000 mm/min

3 Axes motor output(X,Y,Z)

1.8/ 1.8/ 2.5

1.8/ 1.8/ 2.5

4.0/ 4.0/ 7.0

Power Consumption

20 KVA

20KVA

40 KVA



Specifications

HAAS

Model Number

VF- 7

VM - 2

MDC

Spindle Speed

7500 rpm

12,000 rpm

7,500 rpm

Spindle Drive

Belt/Direct type

Inline direct drive

Direct speed belt drive

Max Torque

75 ft-lb@1400

75 ft-lb@1400

75 ft-lb@1400

With Gearbox

250 ft-lb@ 450

-

-

Spindle motor max rating

20 hp

30 hp

20 hp

Axis Motor max thrust

3400 lb

3,400 lb

2,500 lb

Rapids on X-axis

600 ipm

710 ipm

1,000 ipm

Rapid on Y & Z Axes

600 ipm

710 ipm

1,000 ipm

Max Cutting

500ipm

500 ipm

833 ipm

Power Consumption(min)

200 – 250 VAC
380 – 480 VAC

200 – 250 VAC
380 – 480 VAC

200 – 250 VAC
380 – 480 VAC



Specifications

KAFO

Model Number

VMC – 850

VMC – 137

VMC - 21100

Spindle speed (Belt)

8000 rpm

8,000/10,000 rpm

6000/8000 rpm

Spindle speed (Gear)

4000/7000 rpm

4000/7000 rpm

4000/7000 rpm

Rapid Traverse (X, Y)

590.55 ipm

787.4 ipm

393.7 ipm

Rapid Traverse (Z)

472.44 ipm

787.40 ipm

393.7 ipm

Cutting feed rate

236.22 ipm

393.7 ipm

393.7 ipm

Spindle drive motor

7.5/ 10 hp

15/ 20 hp

15/20 hp

X,Y,Z axis drive motor

a12, a12, a12

a22, a22, a30

a30, a30, a30

Power consumption

20 KVA

25 KVA

35 KVA





Specifications

BRIDGE PORT

Model Number

XR 760

XR 1270 HP

XR 1500 HPD

Spindle Speed(Belted)

9000/15000 rpm

-

-

Fanuc Motor Power

25/25 hp

-

-

Heidenhain Motor Power

28/28 hp

-

-

Spindle Speed(Directly coupled)

15000 rpm

15000 rpm

375 – 7500 rpm (Gear Box)

Fanuc Motor Power

30 hp

40 hp

 40 hp

Heidenhain Motor Power

33 hp

34 hp

40 hp

Rapid Traverse (X,Y)

1692 ipm

1417 ipm

1417 ipm

Rapid Traverse (Z)

1417 ipm

1417 ipm

1417 ipm

Cutting Feed rate

787 ipm

787 ipm

787 ipm

Power

30 KVA

40 KVA

40 KVA



Specifications

FADAL

Model Number

VMC 4020

VMC 6030

VMC 6535 HTX

Spindle Speed

10 - 10,000 rpm

10 - 10,000 rpm

6000 rpm

Spindle Drive

Automatic Mechanical Vector Drive

Automatic Mechanical Vector Drive

Automatic Electric Vector Drive

Rapid Traverse (X,Y)

900 ipm

400 ipm

900 ipm

Rapid Traverse (Z)

700 ipm

400 ipm

700 ipm

Cutting Feed rate

600 ipm

400 ipm

600 ipm

Motor Power

10 hp

14.7 hp

29.5 hp

Air Pressure Required

80 – 120 psi

80 – 120 psi

80 – 100 psi



Specifications

TTC

Model Number

TTC-630

TMC 500

XR 1500 HPD

Spindle Speed(Belted)

4000 rpm

6000

-

Spindle Motor Power

15/20 KW

5/7 KW

-

X Axis Motor Power

2.8 KW

-

-

Z Axis Motor Power

2.8 KW

15000 rpm

375 – 7500 rpm (Gear Box)

Coolant Pump Motor Power

1 KW

40 hp

 40 hp

ATC Motor Power

12.6 KW

34 hp

40 hp

Rapid Traverse (X,Y)

197 mm/min

1417 ipm

1417 ipm

Rapid Traverse (Z)

630 mm/min

1417 ipm

1417 ipm

Total Driving Power

40 KW

787 ipm

787 ipm

Hydraulic Pump

1.1 KW

40 KVA

40 KVA











Source: http://cratel.wichita.edu/uplci/wp-content/uploads/2010/03/MR6_Reaming_Process_4-20-101.doc

Web site to visit: http://cratel.wichita.edu

Author of the text: indicated on the source document of the above text

If you are the author of the text above and you not agree to share your knowledge for teaching, research, scholarship (for fair use as indicated in the United States copyrigh low) please send us an e-mail and we will remove your text quickly. Fair use is a limitation and exception to the exclusive right granted by copyright law to the author of a creative work. In United States copyright law, fair use is a doctrine that permits limited use of copyrighted material without acquiring permission from the rights holders. Examples of fair use include commentary, search engines, criticism, news reporting, research, teaching, library archiving and scholarship. It provides for the legal, unlicensed citation or incorporation of copyrighted material in another author's work under a four-factor balancing test. (source: http://en.wikipedia.org/wiki/Fair_use)

The information of medicine and health contained in the site are of a general nature and purpose which is purely informative and for this reason may not replace in any case, the council of a doctor or a qualified entity legally to the profession.



Reaming Process



The texts are the property of their respective authors and we thank them for giving us the opportunity to share for free to students, teachers and users of the Web their texts will used only for illustrative educational and scientific purposes only.

All the information in our site are given for nonprofit educational purposes



Reaming Process





Topics and Home
Contacts
Term of use, cookies e privacy



Reaming Process
