A Unijunction transistor is a three terminal  semiconductor switching device.this device has a unique characteristics that when it is triggered  , the emitter current increases regeneratively until is limited by emitter power supply the unijunction transistor can be employed in a variety of applications switching  pulse generator saw tooth generator  etc.
ujt unijunnction transistor

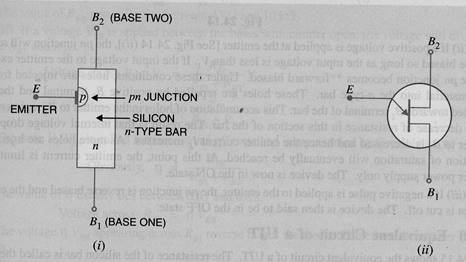

Construction
It consists of an N type silicon bar with an electrical connection on each end the leads to these connection are called base leads. Base 1 B1 Base 2 B2 the bar between the two bases nearer to B2 than B1. A pn junction is formed between a p type emitter and Bar.the lead to the junction is called emitter lead E.

Operation
ujt unijunnction transistor

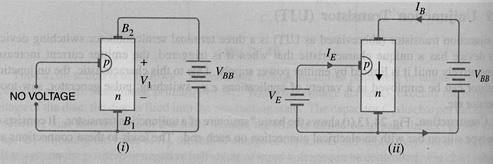

The device has normally B2 positive w.r.t B1
If voltage VBB is applied between B2 and B1 with emitter open. Voltage gradient is established along the n type bar since emitter is located nearer to B2 more than half of VBB appears between the emitter and B1. the voltage V1 between emitter and B1 establishes a reverse bias on the pn junction and the emitter current is cut off. A small leakage current flows from B2 to emitter due to minority carriers

If a positive voltage is applied at the emitter the pn junction will remain  reverse biased  so long as the input voltage is less than V1 if the input voltage to the emitter exceeds V1 the pn junction becomes forward biased.under these conditions holes are injected from the p type material into the n type bar these holes are repelled by positive B2 terminal and they are attracted towards B1 terminal of the bar. This accumulation  of holes in the emitter to B1 region results in the degrees of resistance in this section of the bar  the internal voltage drop from emitter to b1 is decresed hence emitter curret Ie increases as more holes are injected a condition of saturation will eventually be reached  at this point a emitter current limited  by emitter power supply only . the devices is in on state.

If a negative pulse is applied to the emitter , the pn junction is reverse biased and the emitter current is cut off. The device is said to be off state.

Characteristics of UJT
ujt unijunnction transistor

ujt unijunnction transistor

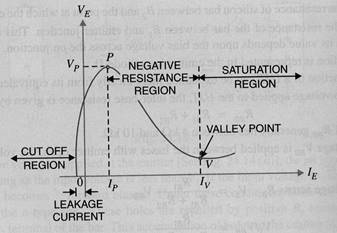

The curve between Emitter voltage Ve and emitter current Ie of a UJT at a given voltage Vbb between  the bases this is known as emitter characterstic of UJT

Initially in the cut off region as Ve increases from zero ,slight leakage current flows from terminal B2 to the emitter the current is due to the minority carriers in the reverse biased diode .

Above a certain value of Ve forward Ie begins to flow , increasing until the peak voltage Vp and current Ip are rreached at point P.

After the peak point P an attempt to increase Ve is followed by a sudden increases in emitter current Ie with decrease in Ve is a neagative resistance portion of the curve
The negative portion of the curve lasts until the valley point V is reached with valley point voltage Vv.and valley point current Iv after the valley point the device is driven to saturation the difference Vp-Vv is a measure of a switching efficiency of UJT fall of Vbb decreases

Advantages of UJT
It is a Low cost device
It has excellent characteristics
It is a low-power absorbing device under normal operating conditions
